Markilux Pergola Compact Overview
- Wall fixed or mounted to the freestanding Markilux Syncra Fix frame system, the Markilux Pergola Compact is a durable fabric roof awning with front support posts.
- Slender front support posts for a quality look.
- Stylish range of frame colours & vast fabric choice.
- Fully encompassing cassette for perfect fabric protection.
- Remote control operation with wireless sun & wind sensor as standard.
- Front profile with integrated gutter and hidden water drainage spouts.
- Manual Shadeplus option for additional vertical sun protection from low-lying sun.
- Tracfix guide available as standard. Uses sophisticated tensioning technology to make sure the fabric is fully sealed within the track and ensuring no water or light ingress.
- The Markilux Pergola Compact enables one or both of the front support posts to be manually lowered by winch handle. This ensures effective water drainage at a minimum 8° pitch as opposed to the traditional 14° recommendation associated with folding-arm awnings if there is limited cassette fixing height.
- Maximum width of 4500mm & maximum projection of 4000mm. Other intermediate sizes available.
The cassette profile, guide tracks, front profile and front support posts complement one another perfectly for a compact and gracefully shaped shading system.

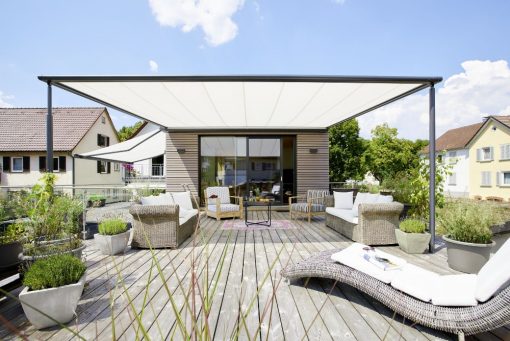

Compact awning system on slender posts at the front and with lateral guide tracks for generous shade.
The awning is powder coated in the standard colours traffic white, off white, metallic aluminium, stone grey, grey brown, havana brown or anthracite metallic.
Support posts optionally round or square to match the style of your property.
When fully extended the rounded front profile sits flush with the end of the guide tracks, giving the system a completely harmonious appearance.
The Markilux Pergola Compact is designed and engineered in Germany.
Sophisticated Tracfix tensioning technology and sturdy construction mean the system can be used up to 30mph (Beaufort 6). Drive belts and integrated gas pistons deliver optimum cover tension on any extension.
Simple installation: fixture of the cassette to the wall and the posts to concrete footings by means of base plates.
Standard height of the front support posts 2500mm, up to a maximum height 3000mm
Manual adjustment of the telescopic support post available by between 200mm and 400mm (dependent on the awning size) by means of winch handle-operated gearbox inside the post.
The round, front support posts further stabilise the awning in addition to the fixture points on the façade – this reduces the pull-out forces on the façade.
Water drainage is guaranteed at a minimum pitch of 14° to the horizontal, the maximum possible pitch is 45°.
Vertical solar protection and more privacy is optionally available with the 210 cm high shadeplus / drop valance for protection against low-lying sun#
Various lighting options available including LED integrated line in cassette, LED spots attached to cassette or LED line/spots on cover support tube
Radio-controlled motor with Markilux remote control – ergonomically shaped.
Polyester powder coating in non-standard colours is available to order (prices on request, longer lead time required).
Support posts optionally round or square.
Wall sealing profile to cover the gap between awning and wall; effective up to an awning pitch of 25°.
Closed appearance thanks to optional Tracfix system without the annoying gap between the cover and the guide track
Markilux patio awnings use high tech water resistant and self cleaning fabrics woven in Germany. Most have achieved the highest possible solar protection factor for textiles (UPF 50+) in independent tests by the Hohenstein Institute.
With over 250 colours and patterns available, from the modern Visutex collection to the timeless Classics range, there is a fabric for everyone. Most patio awning fabrics are classified as either Sunsilk, which is a single woven fabric providing a silky smooth finish and brilliant luminosity, or Sunvas, which is double woven to deliver a softer luminosity. For additional water and fire protection the Sunsilk or Sunvas Perla are available for a 5% surcharge on the awning price.
Click here to see the full range of Markilux fabrics and patterns.
The below frame colours are available at no extra cost. Together with the vast range of fabric patterns on offer, they offer an almost endless choice of finishes for every awning.
If you have something else in mind, it is possible to powder coat your awning any RAL colour (surcharge applies). This gives you the flexibility to match existing features on your home or, for commercial awnings, reinforce brand colours.
Stone Grey Aluminium
Markilux Pergola Compact Options & Accessories
Markilux offer a wide range of options and accessories to add the perfect finishing touch to your awning installation. The below products are suitable for the Markilux Pergola Compact – click here for more information.
Vibrabox Vibration Sensor
Soliris Sun and Wind Sensor
Sunis Sun Sensor
