Markilux 1710 Stretch Overview
- Chic, contemporary & compact cover cassette design.
- End caps available in polished chrome for contemporary aesthetics. Stylish range of frame colours & vast fabric choice.
- Choice of manual or remote control operation.
- The Markilux 1710 Stretch has folding arms which cross above one and other during extension and retraction, enabling a greater projection than width.
- High strength bionic tendon technology.
- Front profile with integrated gutter and hidden water drainage spouts.
- Maximum width of 350cm & maximum projection of 350cm. Projection can be larger than width, for narrow patios and balconies.
Design Features
Elegant cover cassette made of extruded aluminium.
The special cassette shape surrounds the roller tube even when the awning is extended thus creating an overall harmonious appearance.
The transition from torque bar to roller tube is curved and homogeneous.

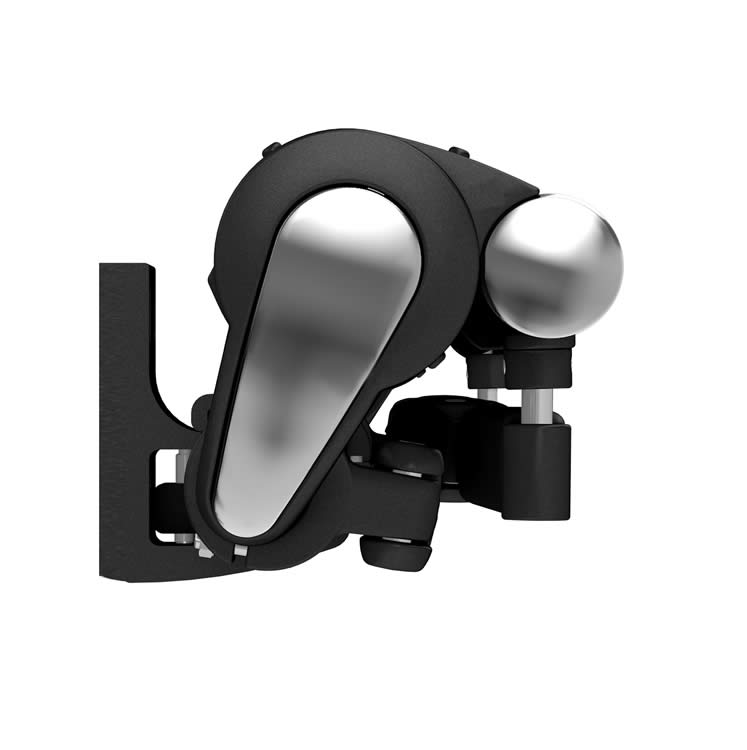

Side caps available in polished chrome offer an optional designer touch.
Designed and engineered in Germany.
Technical Features
Thanks to this innovative technical solution – tiered arms – the Markilux 1710 Stretch means larger projections can still be achieved in a narrow awning.
Attractive front profile made of extruded aluminium with integrated gutter and water drainage spouts.
Sturdy, round steel torque bar, 5cm Ø, to prevent twist and deflection.
The 8.5cm roller tube ensures the highest stiffness and the best possible cover winding characteristics even at the largest widths.
Unique arm technology delivering power transference by way of the highly tear-resistant bionic tendon made of high-tech fibres, achieving at least 50,000 cycles in tests by the Fraunhofer Institute.
Optional Features
Radio-controlled motor with radio remote control for ease of use.
Hard-wired motor operation (optionally with automatic weather controls) for straightforward and easy operation.
Wall sealing profile to cover the gap between awning and wall.
In the case of manual operation ease of use is ensured with the spring-assisted gearbox.
The Markilux 1710 Stretch is available in non-standard RAL colours.
Markilux infrared heater in a compact aluminium housing; creating warmth without heating-up within an area of approx. 9–12m².
Fabric Options
Markilux patio awnings use high tech water resistant and self cleaning fabrics woven in Germany. Most have achieved the highest possible solar protection factor for textiles (UPF 50+) in independent tests by the Hohenstein Institute.
With over 250 colours and patterns available, from the modern Visutex collection to the timeless Classics range, there is a fabric for everyone. Most patio awning fabrics are classified as either Sunsilk, which is a single woven fabric providing a silky smooth finish and brilliant luminosity, or Sunvas, which is double woven to deliver a softer luminosity. For additional water and fire protection the Sunsilk or Sunvas Perla are available for a 5% surcharge on the awning price.
Click here to see the full range of Markilux fabrics and patterns.
Frame Options
The below frame colours are available at no extra cost. Together with the vast range of fabric patterns on offer, they offer an almost endless choice of finishes for every awning.
Traffic White
Off White
Metallic Aluminium
Stone Grey Metallic
Anthracite Metallic
Havana Brown
Grey Brown
Custom RAL (POA)
Markilux 1710 Stretch Options & Accessories
Markilux offer a wide range of options and accessories to add the perfect finishing touch to your awning installation. The below products are suitable for the Markilux 1710 Stretch – click here for more information.
Remote Control
Soliris Sun and Wind Sensor
Sunis Sun Sensor
Infrared Heater
Spotline LED Lighting Bar
Hotspot Heating & Lighting Bar
Fabric Signwriting
Why choose Markilux and Roché?
Markilux products combine years of experience and expertise in the design and manufacture of awning frames and fabrics. Roché has worked with Markilux for the last 20 years, and over this time we have learnt that no wall mounted retractable patio awning lasts longer, with customers enjoying years and years of hassle-free usage.
Safety
Markilux are audited by independent bodies which document their commitment to quality. All awnings are CE marked and have been tested according to the European Standard EN 13561, at wind speeds up to and including Beaufort 5.
Innovation
By setting the precedent in design, engineering and manufacture, Markilux is at the forefront of innovation. As a result their products anticipate the requirements of tomorrow and meet them today.
Dynamics
At Roché we offer the latest Markilux product designs. Customers can depend on us for the most recent technological advancements, whether it’s an upgrade for an existing installation or a completely new awning.
Functionality
All awnings are manufactured from the best quality materials, ensuring problem-free operation for many years. Whether an electric or manual design, many find their awning couldn’t be any easier to use.
Service
As a specialist Markilux dealer, our team are experts when it comes to the sale and installation of patio awnings. Markilux has supported Roché over many years with training and technical knowhow.
Design
Trend setting or classic, Markilux products are always timeless. Expert designers have created beauty in both the technological and the textile, and we work closely with them in the manufacture of each bespoke product.
